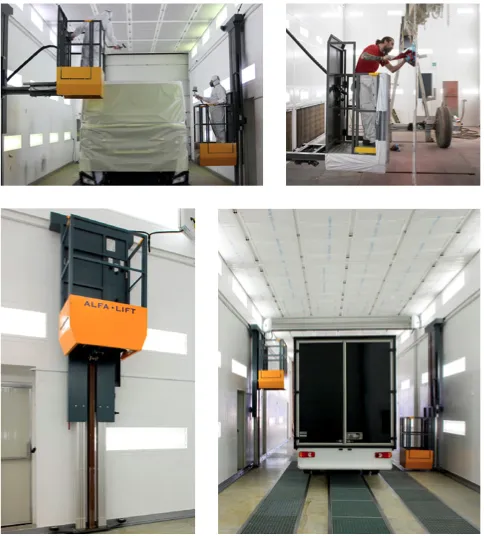

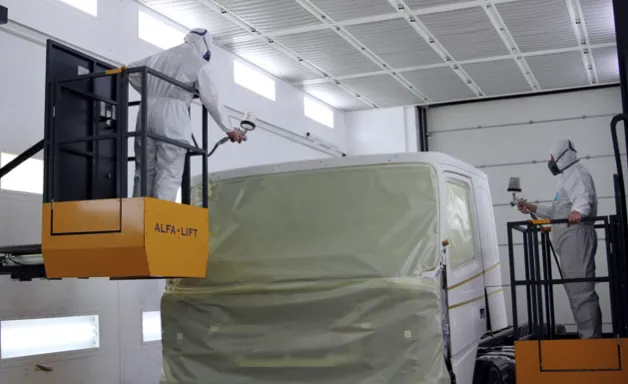

OPERATOR LIFTS (ALFA MODEL 730)

PNEUMATIC LIFT -TECHNICAL DETAILS:

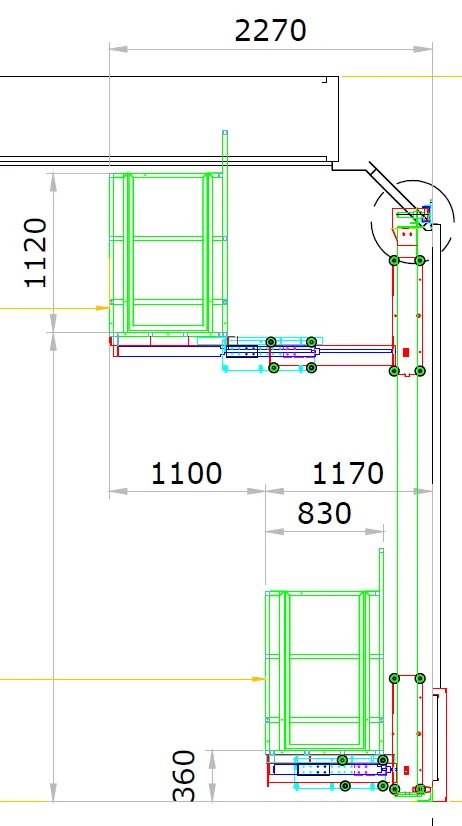

1. 2 pieces of personnel lift with 3 axis motion will be supplied and installed .
2. Energy type: Compressed air but no electricity connection.
3. Working height: 2.900 meters.
4. The ability to move up to the middle of the wall cabinet: maximum 1.500 mm
5. Maximum carrying capacity: 120 kg (1 person)

When making a single command on the control panel:

1. Joystick control
2. Hoisting-and-download
3. The wall that will go along
4. The center will go towards of

Lifting speed: up to 10 cm / s

Download speed: up to 10 cm / s

Driving speed: up to 5 km / h

Connection equipment, wheel walking rails, mounted on steel frame brackets, roller hoses and clamps will be included in assembly.
